New Look - CoApp Package Maker

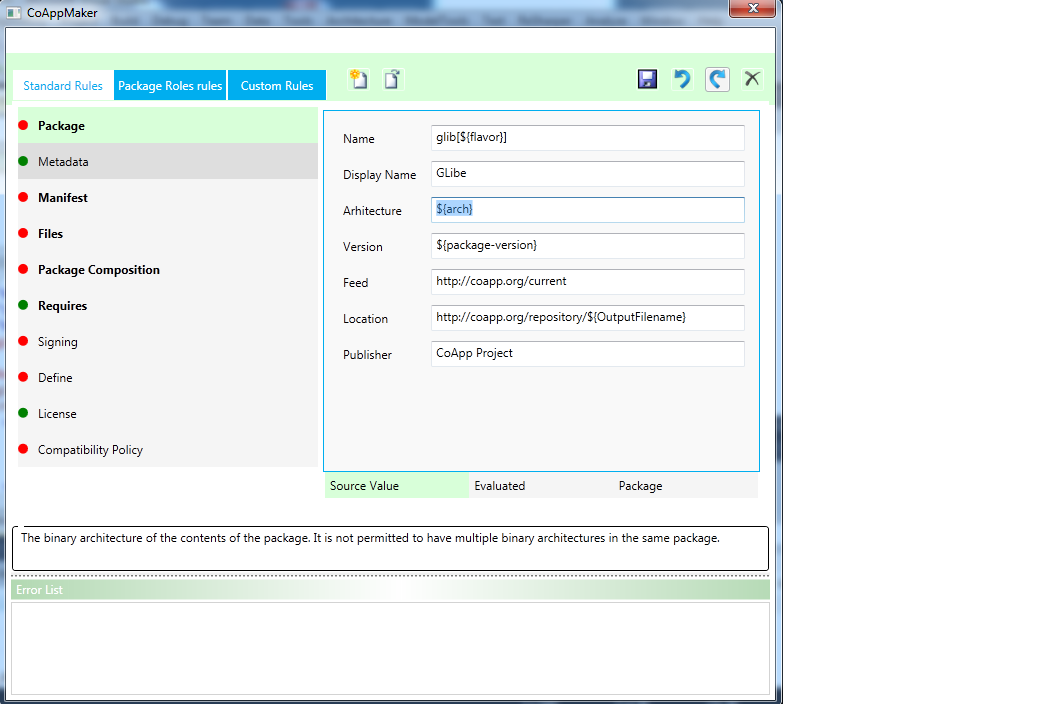

Last week I updated the UI.

Main parts are:
 List of Package Rules on the left side and rule's details on the right side.
   The Rules with Bold font are Mandatory rules and with  Normal Font are optional rules.
   The Color Green or Red show if  edited rules contains some errors or no.
Available Buttons
   There  are two groups of the buttons :
   [ Open, New]
   [ Save, Undo, Redo, Reset ]


In the bottom part is a Panel containing help tip and errors list. ( it is possible to resize these parts  using splitter)
Help Tip
When a UI control (ex.,text box) is focused the help tip is displayed in the GroupBox.
Errors List
Error List Header color is green when there are no errors, if is red at least one error exist it become red.

The Intensity (Opacity) of the red color is binding directly to the errors number.








Validation Rule on each Property:

Is made by adding validation rules directly on binding:
 <Binding  Path="Version" >
                    <Binding.ValidationRules>
                        <local:ValidationRule  ValidationStep="UpdatedValue"     ValidatesOnTargetUpdated="True"/>
                    </Binding.ValidationRules>
  </Binding>

->The red border for the Textbox, when validation rule returns false is default behavior.


In the top part is a place reserved for the menu/ navigation bar (is left blank now). Possible options are: File Editor (Working part), Quick Edit (drap and drop tool), Help.

Idea with green and blue colors  came from CoApp Style:



Report No.3 GSoC 2012

Briefly description of the  progress is:


Done:

• All Rules' and Roles' properties are editable ( properties and collections - Add /remove and edit the property of an item in the collection).
• User Control Editable List.  In order to simplify editing and synchronizing the views (Source value and Evaluated ), UC  have own ViewModel and it is used  in both views - Binding is made on different properties of an Editable Item. The evaluation rule  for Value is set through delegate, when Collection of Editable items is created.
• DataTemplated View for the Define Rules
• Save, Reset, Undo, Redo Buttons functionalities

To do:

• Guiding user how to edit :

           - Display Help Tip for each rule and property
           - Display warnings (Ex. when a define property is removed, to display warning in the rules where   define is used)
           - Focus issue - to choose the best option (Attached Property, Routed Event , Focus Manager?)

• In the Files' Include List add browse file functionality
• Test with different packages
• Work on UI

                   ---WPF fun stuff has just began :)   ---


To think about and discuss (Extra features):
Quick edit : Wizard tool that include steps - Reading data form the installed certificate and  drag&drop files.

Report No.2 GSoC 2012

This week I succeed with reading the source values/evaluated values and started with real editing.

So, for each rule 3 kinds of views are available:

- Source

- Evaluated

- Package (Source String)

1. Source

In this view are displayed source values for properties, and user can edit the value.

All the changes are reflected in the second - Evaluated View.

2. Evaluated

In this view are displayed evaluated values for properties, and user can only view (text boxes are disabled).

3. Source String

I added this view in order to offer the user a clear view of  the part of  .autopkg file, which is edited from the first tab - Source Value. Source String tab is in a view only mode - not for editing.

For the Undo/Redo functionality I used  Monitored Undo Framework  from  http://muf.codeplex.com/

The Root of the History is  MainViewModel and it keeps  the stack of changes for all View Models (Source Values). After Editing a Source Value, user can navigate to the Evaluated tab and see the changes (I think is especially interesting/important to see the reevaluated values when source value have parameters, ex: glib[${flavor}]  or  "libffi[${flavor}]-${libffi-dep-version}-${arch}-${libffi-dep-publickeytoken}"). When user press undo/redo having focus on the evaluated tab,  the reevaluated undo/redo undo is shown ( is not needed to navigate back to the source values to perform undo/redo - both view models are updated/synchronized).

Next week problems to solve:

• WPF Focus  Issue - when perform undo/redo for the different rules located on different tabs, to set the focus on the corresponding control - tab, textbox etc.
• Support editing and undo/redo for the collections - ex: list of assemblies for the manifest rules, list of files, required package collections
• Create User control  'Editable List for the Collections'
• Create the Dynamic view for the #define rule

               For this rule the view is different, because there are no fixed properties which are expected,

               so the list of properties could be like :

 #define {

    general-description : "GLib is a general-purpose utility library for C, mostly used with GTK and GNOME.";

};

#define {

    package-version : 2.32.3.7;

    author-version : 2.32.3;

    outercurve-publickeytoken : 1e373a58e25250cb;

    deps-publickeytoken : "${outercurve-publickeytoken}";

    libintl-dep-version : 0.18.1;

    libintl-dep-publickeytoken : "${deps-publickeytoken}";

    libffi-dep-version : 3.0.10;

    libffi-dep-publickeytoken : "${deps-publickeytoken}";

    zlib-dep-version : 1.2.5;

    zlib-dep-publickeytoken : "${outercurve-publickeytoken}";

    flavor : "${comp??vc10}";

    arch : "${plat??x86}";

};

Report No.1 GSoC 2012

 I started with Creating View Models for each rule/role, using the information from http://coapp.org/developers/autopackage.html . I used factory method to create all View Models in the MainView Model. Package data is loaded using https://github.com/coapp/devtools/blob/master/Packaging/PackageSource.cs  and I  created a Reader class,
getting values by:  RoleName, PropertyName, Parameters  etc

Testing part:
- Unit test for ChangePropertyInTheRule OnPropertyEvent raised.
- Unit Testing for Command New and Remove a Rule
 All test were created for checking local collections of rules and properties, more exactly -  if my bindings and commands works fine.



UI:
I started with creating simple basic UI, without adding styles and fixed my attention on functionality.
In order to simplify the binding between rules list and  rules details(properties),  I chose the structure TabControl in TabControl.

For displaing rules with parameters, for example Files:
I chose to display them in a list, using a data template with expander and grouping them by categories:

Created commands:
Add New and  Remove(implemented) ; save, reset, undo, redo.
Changes are stored in the local collection and when user press Save button, changes will be written in the file.

Next week I will continue with:
- display source values and values views.
- editing,  introduce validation data rules (data type - to restrict wrong input values and guide user ).
- undo redo mechanism

CoApp Package Maker GUI

I'm really happy to write here that I have been selected to develop a project for CoApp in the frame of GSoC. The project’s name is CoApp Package Maker GUI and it is mentored by Eric Schultz. Here follows a short description of the project:

The CoApp project has a command line tool that allows a developer to create packages. The purpose of the project is to create a desktop application that would allow software publishers to create a package in a GUI, instead at the command line. Creating package in GUI has a lot of advantages: an intuitive UI is easier to use for most of the users and don’t need long learning time; offer easy view and control for multiple items, so it's more faster ; package creation is a multi-step task that can easily be grouped together in a way that prevent wrong input. This would be a great advantage for open source developers who wish to create packages, but are a little daunted by the script-based package creation.

Feel free to visit my project proposal and github repository .

In this blog I will share the information about my progress and describe step by step my work. I look forward to any comments, suggestions and encourage everyone to give feedback.

This is going to be a fun summer of coding!
